metal building materials for interior wall decoration

metal building materials for interior wall decoration

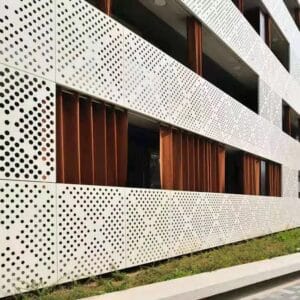

Aluminum punching panel: refers to the use of a variety of aluminum alloy panel by mechanical punching plate.

Is a kind of noise reduction and decorative effect of the new products,

but also has light material, high temperature resistance, corrosion resistance, fire prevention, moistureproof,

shockproof, good chemical stability, beautiful shape, elegant color,

three-dimensional sense of strong, good decorative effect and so on.


Send Inquiry


metal building materials for interior wall decoration

Aluminum panel curtain wall adopts high quality and high strength aluminum alloy panel, its common thickness is 1.5, 2.0, 2.5, 3.0MM, model is 3003, state is H24.

Its structure is mainly composed of embedded sheet, panel, stiffener and corner code. Embedded sheet through bolt and structure connection force, Angle code can be directly by the panel bending, stamping molding, also can be in the small edge of the panel riveting Angle code molding.

The reinforcement bar is connected with the welding screw (the screw is directly welded on the back of the panel), so that it becomes a firm whole, greatly enhancing the strength and rigidity of the aluminum panel curtain wall, ensuring the smoothness and wind resistance and earthquake resistance in long-term use.

If you need sound insulation, high efficiency sound insulation materials can be installed inside the aluminum panel.

Aluminum panel is divided into two kinds from the specification: the thickness of the following 1.2mm aluminum panel is called aluminum buckle sheet (also called aluminum square sheet), the thickness of more than 1.5mm aluminum panel is called aluminum panel (also called aluminum curtain wall)

Surface treatment

The surface of aluminum curtain wall is generally treated with fluorocarbon spraying after chromation. Fluorocarbon paint topcoat and varnish polyvinylidene fluoride resin (KANAR500). Generally divided into two coated, three coated or four coated. Fluorocarbon coating has excellent corrosion resistance and weather resistance, acid rain resistance, salt fog and a variety of air pollutants, excellent cold and heat resistance, can resist strong ultraviolet radiation, can maintain long-term colorless, not powdering, long service life.

Feature editing broadcast

1. Aluminum curtain wall has good rigidity, light weight and high strength. Aluminum veneer screen wall panel has good corrosion resistance, fluorocarbon paint can be up to 25 years without fading.

2. Aluminum curtain wall technology is good. The aluminum panel can be machined into various complex geometric shapes such as plane, arc and sphere.

3. Aluminum curtain wall is not easy to stain, easy to clean and maintain. Fluorine coating film non-adhesion, so that the surface is difficult to adhere to pollutants, more good cleaning.

4. Convenient installation and construction of aluminum curtain wall. Aluminum panel in the factory forming, the construction site does not need to cut only simple fixed.

5. Aluminum curtain wall can be recycled and reused, which is favorable for environmental protection. Aluminum panel can be 100% recycled, recycling value is higher.

Aluminum curtain wall has unique texture, rich color and lasting, and can be diversified in appearance shape, and can be perfectly combined with glass curtain wall material and stone curtain wall material. Its perfect appearance, excellent quality, so that it is favored by owners, its light weight, only one-fifth of marble, is one-third of the glass curtain wall, greatly reduce the load of the building structure and foundation, and low maintenance cost, high performance price ratio.
